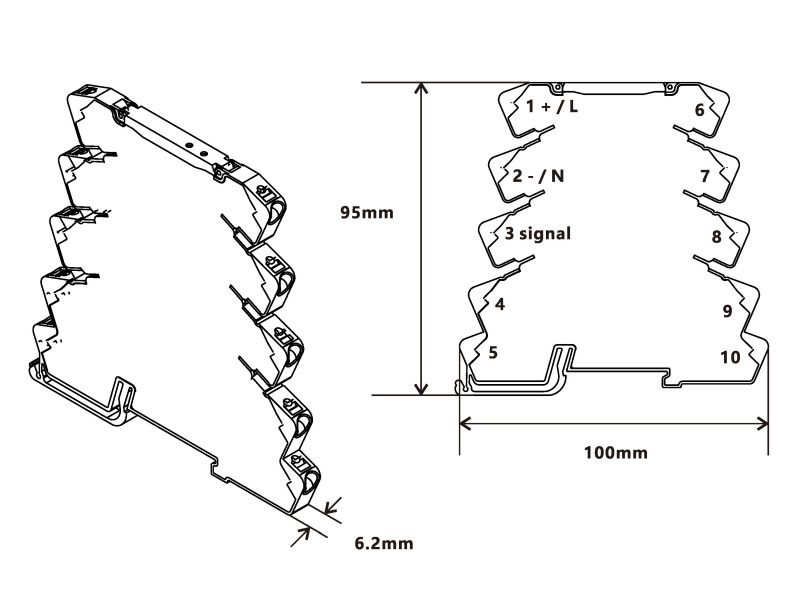

? Thickness is as thin as 6.2mm
? Jumper Bars ensure easy common wiring and crossover wiring to adjacent terminal relays
? Push-in connection design to save time of wiring
? Realized 5A rating (NO or NC type relay) /6A rating (CO type relay) by optimal designs for wide variety of applications
|

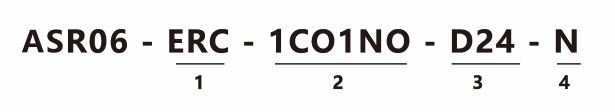

1.Function |
|
|
ERC |
Electromechanical Relay with control |
|

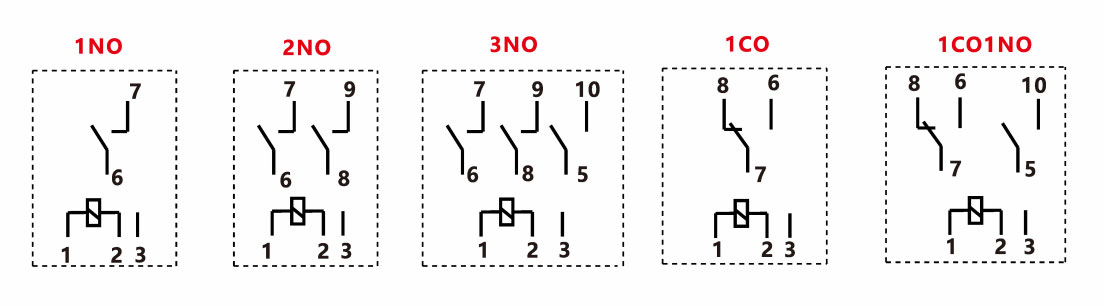

2.Contact form |
|
|
3NO |
1NO*3 |
|
2NO |
1NO*2 |
|
1NO |
1NO*1 |
|
1CO1NO |
1CO*1+1NO*1 |
|
1CO |
1CO*1 |
|
3.Rated voltage |
|
|
D5 |
DC5V |
|
D9 |
DC9V |
|
D12 |
DC12V |
|
D24 |
DC24V |
|
D48 |
DC48V |
|
D60 |
DC60V |
|
A110 |
AC110V |
|
A220 |
AC220V |
|

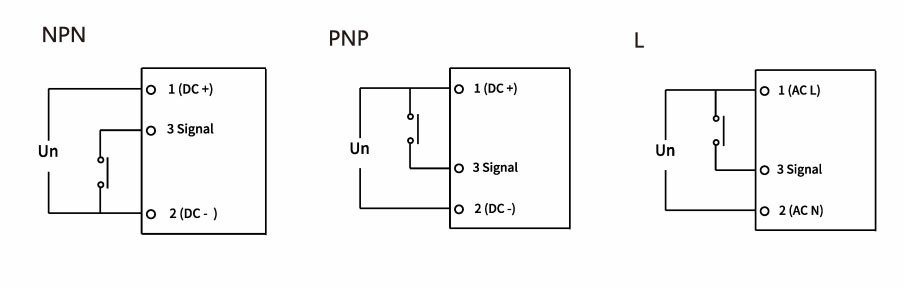

4.Signal |
|
|
P |
PNP(DC input only) |
|
N |
NPN(DC input only) |
|
L |
AC input only |
|
|
ASR06-ERC |
|
Supply voltage |
Rated voltage±10% |
|
Rated current |
5A |
|
Max switching capacity |
1500VA |
|
Initial contact resistance |
≤100mΩ |
|
Mechanical life |
≥200×10? times |
|
Operate time |
≤8ms |
|
Release time |
≤4ms |
|
Impulse withstand voltage |
4000V |
|
Protection level |
IP20 |
|
Storage temperature |
-55~+85℃ |
|
Working temperature |
-20~+85℃ |
|
Mounting |
DIN rail EN/IEC 60715 |
|
Stripping length |
7mm(0.28in) |
| Installed altitude | ≤2200m |
*The above information is subject to change without further notice
